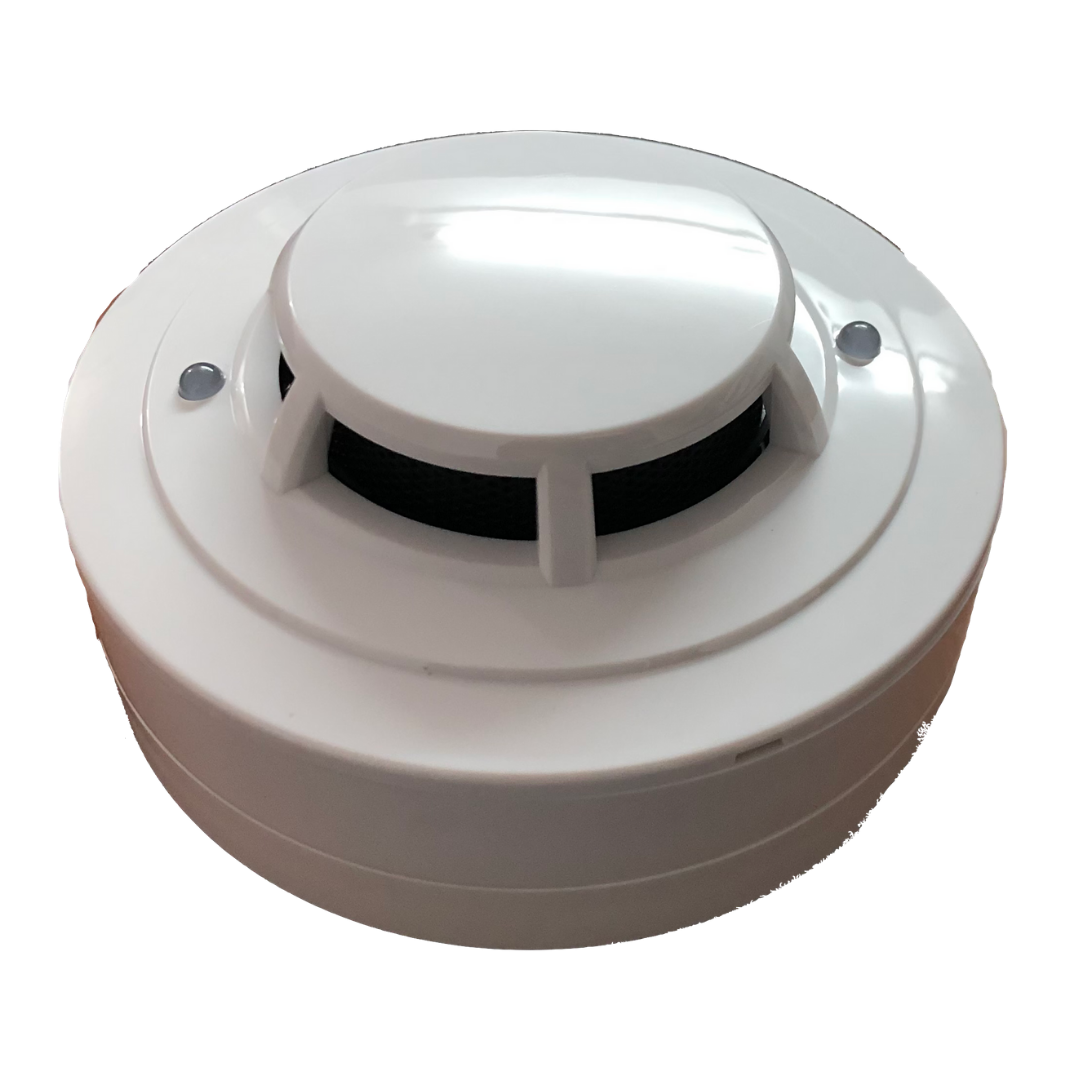

A conventional smoke detector is a ceiling-mounted detector that senses smoke and signals a conventional fire alarm panel when it finds it. The MANXPOWER conventional smoke detector uses a photoelectric sensor, connects with two wires and covers up to 60 m² at a 4 m ceiling height. It suits offices, hotels, shops, warehouses and the common areas of residential buildings that have a fire alarm panel.
How does a conventional smoke detector work?
A photoelectric detector has a small sensing chamber with a light source inside. In clean air the light does not reach the sensor. When smoke enters the chamber, it scatters the light onto the sensor, and the detector sends an alarm signal to the panel. A green LED flashes in normal operation and a red LED lights up in alarm. After an alarm, once the smoke has cleared, the detector is reset by switching the power off and on (power-off reset).
Conventional means the detectors on a circuit, called a zone, share one pair of wires back to the panel. The panel shows which zone is in alarm, not which single detector. If you need an address for every detector, you need an addressable system. Read more in our conventional fire alarm systems range.
Conventional vs addressable vs standalone smoke detectors
| Type | How it connects | What the panel shows | Suits |
| Conventional | Detectors share a 2-wire circuit to the panel | The zone in alarm | Small to medium buildings such as offices, shops, hotels and warehouses |
| Addressable | Detectors sit on a loop and each has an address | The exact detector in alarm | Large or complex buildings |
| Standalone | Battery powered unit with its own sounder | No panel, local alarm only | A single room or small space |
Smoke detector specifications
| Detail | Specification |
| Type | Conventional photoelectric smoke detector |
| Wiring | 2-wire |
| Operating voltage | DC 12 to 32V |
| Static current | 15 to 30 μA |
| Alarm current | 20 to 30 mA |
| Sensitivity | 0.15 to 0.5 dB/m |
| Coverage | Up to 60 m² at 4 m ceiling height |
| Operating temperature | -10°C to +55°C |
| Humidity | Up to 95% RH |
| Indicators | Green LED (normal), red LED (alarm) |
| Reset | Power-off reset |
| Mounting | Ceiling mounted, detector head on a base |
| Brand | MANXPOWER |
What is the coverage area of a smoke detector?
One MANXPOWER smoke detector covers up to 60 m² at a ceiling height of 4 m, according to our specification. Use that as a limit, not a target. Room shape, ceiling height and obstructions change the real spacing, so the number of detectors comes from your fire design.
Where to use a conventional smoke detector
- Offices and commercial buildings
- Hotels, guest rooms and common areas
- Shops and showrooms
- Warehouses and storage areas
- Residential buildings with a fire alarm panel, such as corridors, lobbies and rooms
It is not meant for kitchens, boiler rooms or very steamy or dusty spaces. Use a heat detector there. For a single room with no fire alarm panel, see our standalone smoke detectors. If you want smoke and heat sensing in one head, see our multi sensor detector.
Why choose a photoelectric detector?
Photoelectric detectors respond well to smouldering fires, the slow kind that give off smoke before flames. They also tend to cause fewer nuisance alarms from cooking fumes than ionisation detectors. No smoke detector is immune to dust, insects or steam, so keep it clean and mount it away from vents.
How to install a smoke detector
Keep the area clean and free of dust while you work. Choose a ceiling location, ideally at the centre of the room, away from air vents and fans. Check that your panel’s detector circuit voltage is inside DC 12 to 32V, since many conventional panels run at 24V. Fix the base firmly with the screws provided. Wire the base as shown in the wiring diagram supplied with the unit. Align the detector head and twist it onto the base to lock it in place. Test the unit to confirm the alarm works.
For upkeep, test the detector regularly. Many maintenance plans test monthly and clean every six months, so follow your fire consultant’s schedule. Use a smoke detector tester, not an open flame. Clean it with a soft, dry brush. Switch off the power before any maintenance. Check the LED indicators during inspections. If an LED stays faulty or performance looks inconsistent, contact authorised service personnel. Do not open the unit.
Safety note: no detector can guarantee protection on its own. Regular testing, maintenance and sound fire safety practices remain essential.
Smoke detector price in India
The MANXPOWER conventional smoke detector costs ₹1,500. Conventional photoelectric smoke detectors are commonly listed in India at about ₹540 to ₹1,300 (marketplace listings, November 2026), and branded models are often higher. Buy online, or message us on WhatsApp or call +91 11 4987 2937 for a bulk quote, Monday to Saturday, 10:30 AM to 5:00 PM.
About MANXPOWER
MANXPOWER is the brand of Manx Impex, an ISO 9001:2015 certified supplier of industrial and fire safety products based in New Delhi since 2015.
