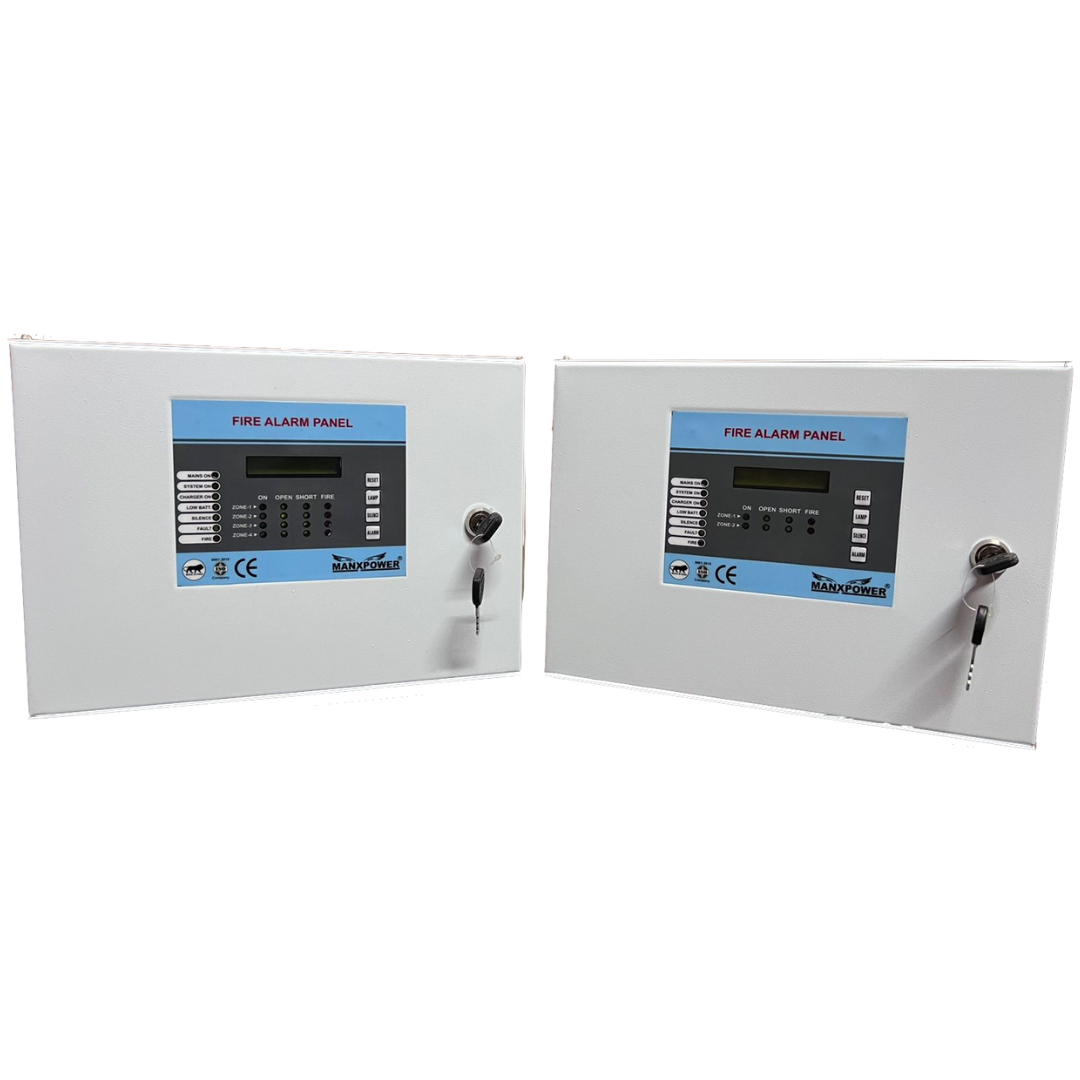

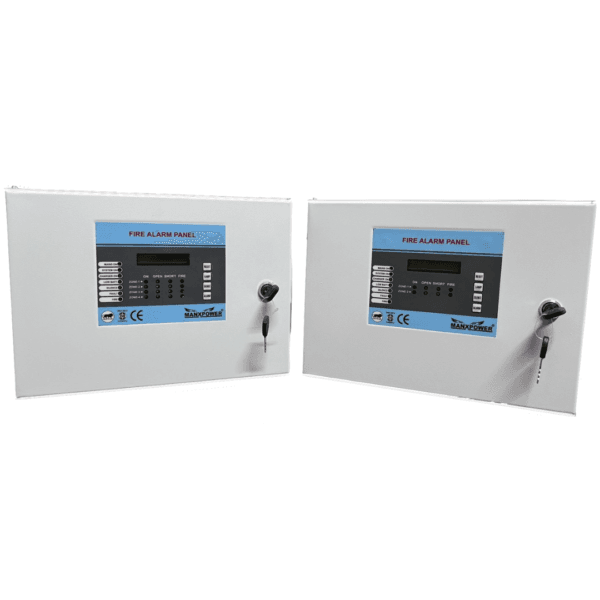

A conventional fire alarm panel is the central control unit of a fire alarm system, monitoring detectors and hooters across defined zones and triggering an alarm the moment a fire signal is received. The MANXPOWER Conventional Fire Alarm Panel is a microprocessor-based panel available in 2 to 16 zone configurations, built to give small, medium, and large commercial or industrial buildings reliable, easy-to-monitor fire detection and control.
Key Features

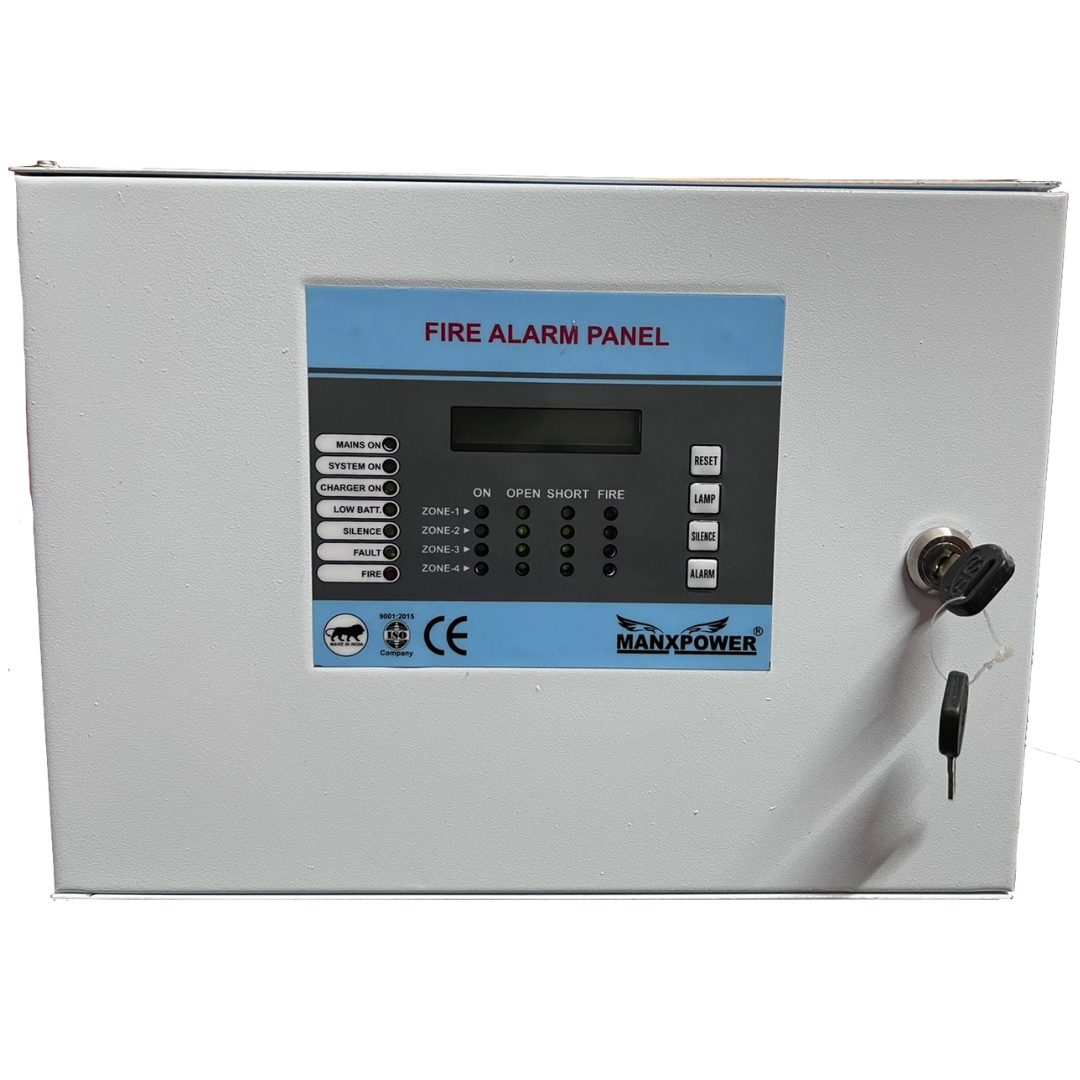

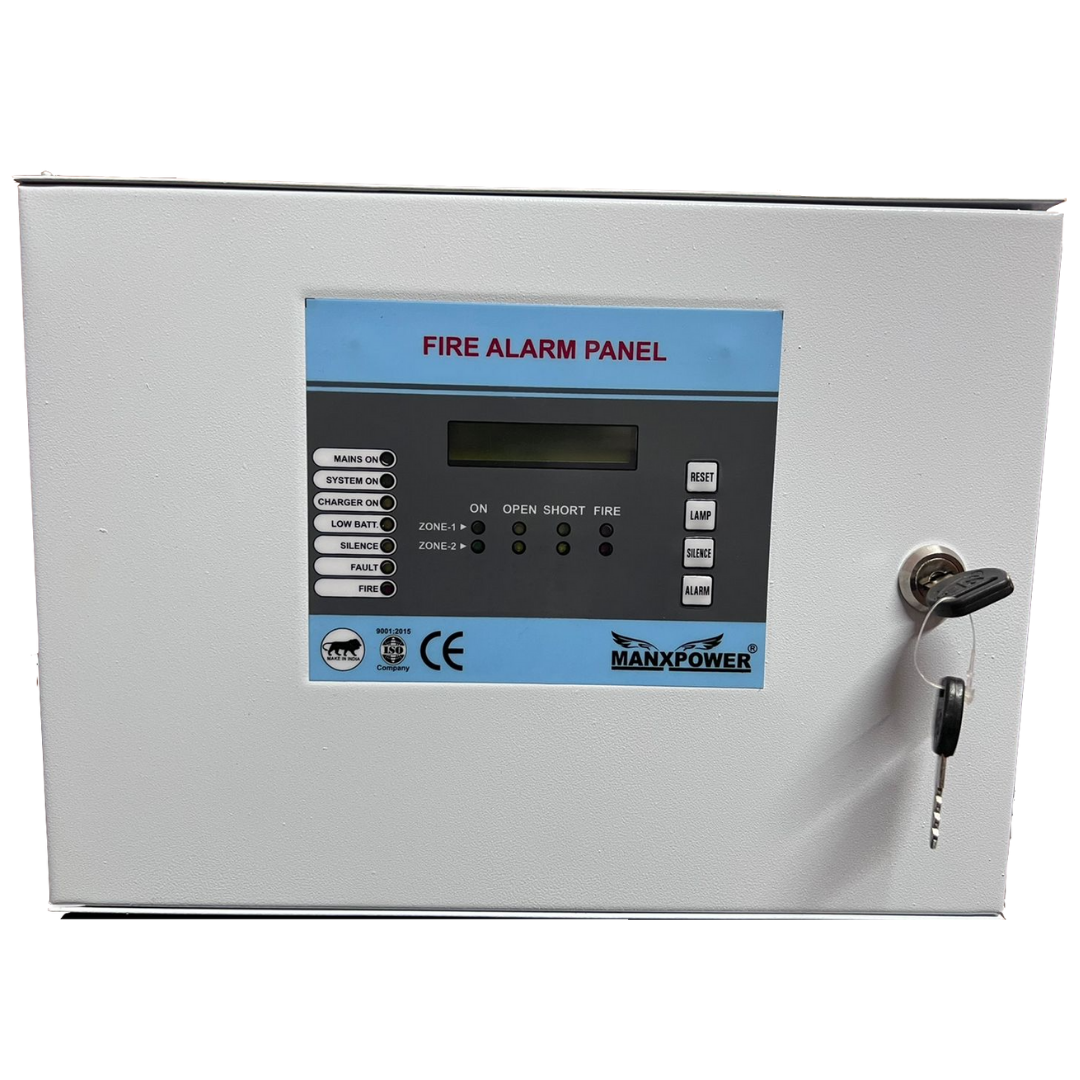

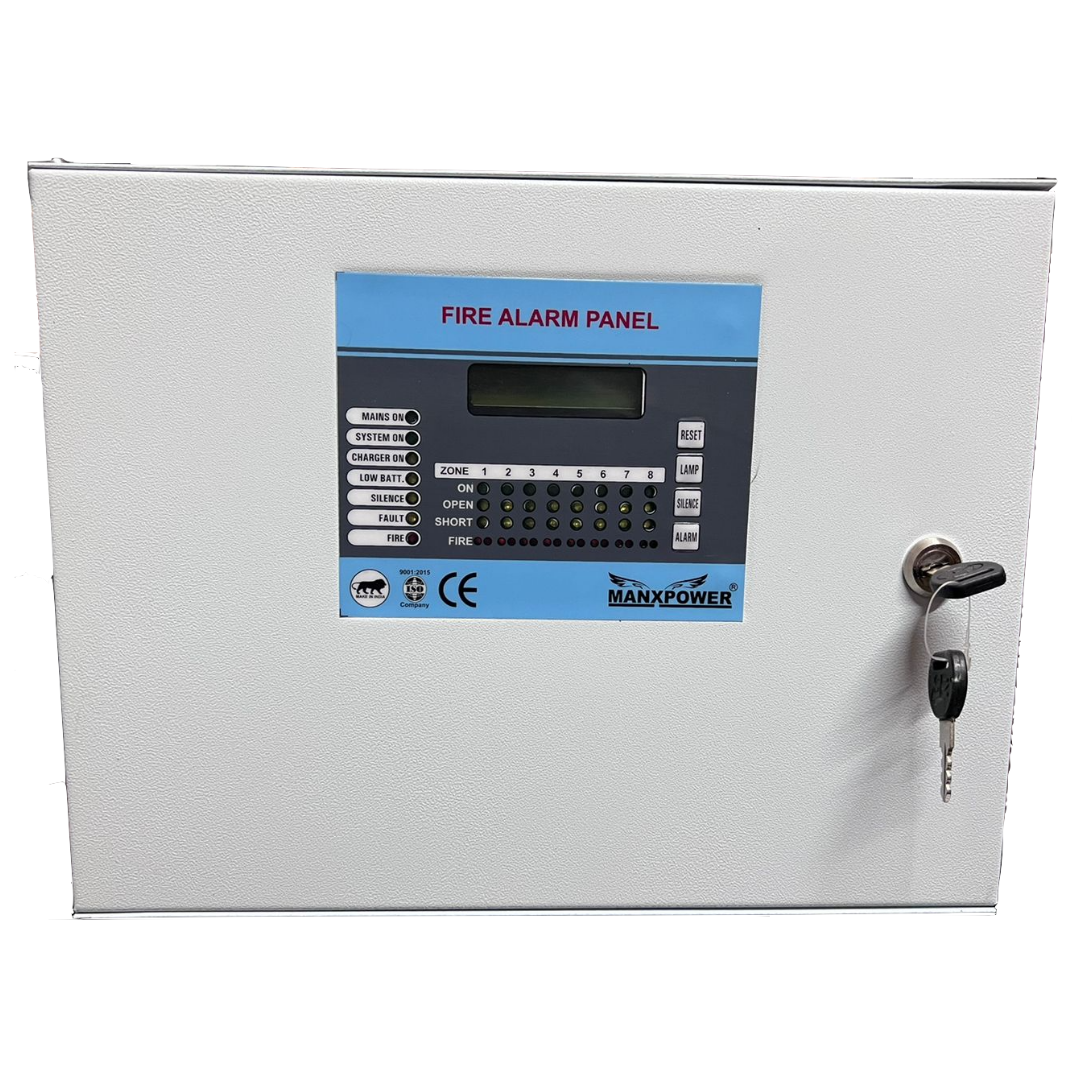

- Available in 2, 4, 8, 10, 12, and 16 zones
- Equipped with a 16×2 Dot Matrix LCD Display for clear system status
- Microprocessor-based technology for accurate detection and control
- Standby battery backup with built-in charging for uninterrupted protection
- Fire/Fault status LEDs in clear, color-coded indicators
- Switch Mode Power Supply (SMPS) for energy efficiency
- Tactile keypad for easy operation and system configuration
- System ON, Main, and Standby indications for real-time monitoring
- Low battery warning through visual indication
- Relay outputs available for actuators (Fire and Fault)
- Lamp test function for quick panel check
- Zone-wise one-man walk test facility for maintenance and inspection
- Zone isolation facility with loop voltage cut-off
- Compatible with all types of conventional smoke and heat detectors
- Zone-wise and common hooter facility for clear alarm signaling
- Supports external auto dialer for remote alerting
- Fuse protection for AC input, battery output, and motherboard safety
- Rugged powder-coated steel housing for durability and long life
This is also a natural place to reinforce the primary keyword: as a conventional fire alarm panel, this unit is built to work across all zone sizes without requiring a different control architecture for each – the same panel logic scales from a single-zone shop to a 16-zone industrial facility.
Technical Highlights
- Power Input: AC 230V, 50Hz ±5% / DC 24V
- Additional Output: 12V DC auxiliary supply
- Ampere Load: 1A to 3A (depending on zone configuration)
- Material: CRCA sheet metal housing, powder-coated finish
- Power Consumption: 30W to 50W
- Hooter Compatibility: Supports multiple hooters per zone
- Detectors per Zone: Up to 20 detectors
- Fuse Rating: 1.5A to 3A protection
- Color: Elegant white finish
- Suitable for small, medium, and large commercial or industrial buildings
User Benefits
- Reliable fire protection across multiple zones
- User-friendly interface for simplified monitoring and testing
- Strong build quality for long-term operation in demanding environments
- Energy-efficient design with built-in power supply protection
- Easy maintenance and installation with zone-wise test and isolation features
Applications
- Office buildings
- Industrial plants
- Shopping complexes
- Hospitals and educational institutions
- Warehouses and manufacturing units
Why Choose MANXPOWER Fire Alarm Panels?
- Engineered for precision, durability, and performance
- Backed by advanced microprocessor technology
- Compatible with a wide range of conventional fire detectors
- Easy operation, testing, and maintenance
- Designed to meet modern fire safety standards
- Transparent conventional fire alarm panel price in India, with no hidden costs across zone configurations
As a trusted conventional fire alarm panel supplier in India, MANXPOWER builds each unit to the same reliability standard across every zone configuration , so the panel you install in a single shop is built on the same core technology as the one running a full industrial facility. Customers can buy conventional fire alarm systems directly through MANXPOWER, whether it’s a single 2-zone panel for a shop or a full 16-zone setup for an industrial facility.
#BigOrSmallFireSafetyIsForAll
At MANXPOWER, we believe fire safety should be accessible, reliable, and effective for every establishment. Continuous research and innovation drive us to improve our fire alarm systems and deliver products that truly safeguard lives and property.
