Reliable Fire Detection Through Temperature Sensing

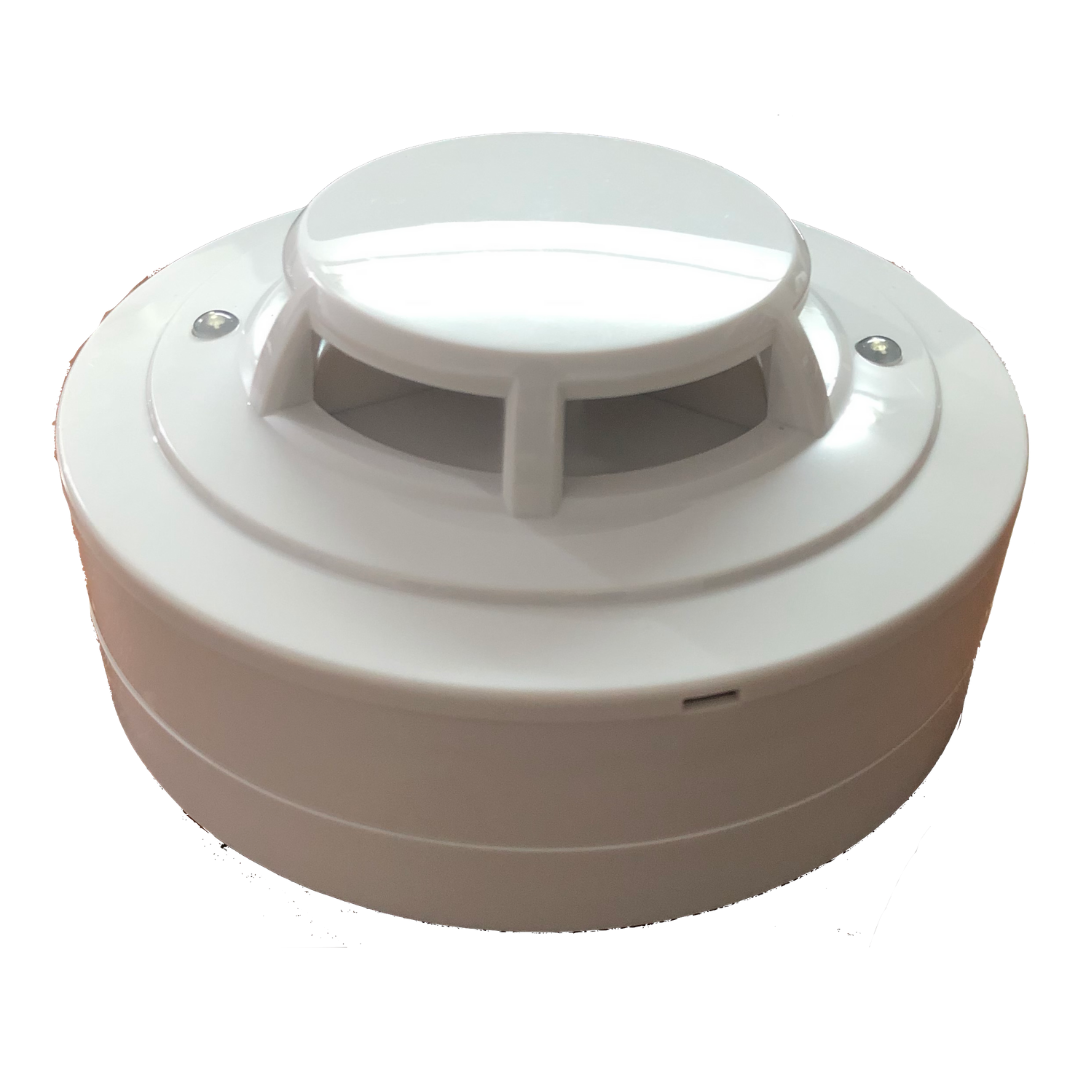

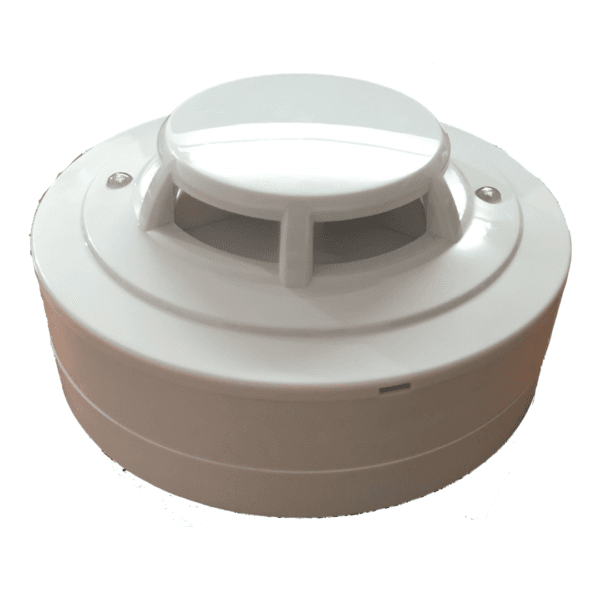

The MANXPOWER Heat Detector is a high-quality fire detection device that operates by sensing rapid temperature changes or excessive heat in the environment. Designed for reliable performance, it is ideal for locations where smoke detectors may not be suitable, such as kitchens, garages, boiler rooms, and workshops.
Built with advanced sensing technology and a durable structure, the MANXPOWER Heat Detector ensures accurate and stable detection of fire-related heat sources, minimizing false alarms.
This product is a heat detector, which runs by inducting ambient temperature. Adopted by advanced SMT processing technique and special structure design, it has the functions of dustproof, anti-electromagnetic interference and avoiding flase alarm, the stability of the product is assured from the above. It is suitable for detecting temperature in houses, stores, hotels, and warehouses etc.
Key Features
- High-sensitivity heat sensing technology for accurate fire detection
- Stable performance in environments with dust, humidity, or smoke
- Dual LED indicators for easy monitoring
- Green LED: flashes in normal operation mode
- Red LED: lights up when alarm is triggered
- Automatic reset function once the temperature returns to normal
- Strong anti-interference design to prevent false alarms
- Ceiling-mounted installation for wide area coverage
- Durable construction for long-lasting use in demanding environments
Technical Specifications
- Operating Voltage: DC 12–32V
- Static Current: ≤ 70μA
- Alarm Current: ≤ 30mA
- Operating Temperature: 0°C to +55°C
- Operating Humidity: Up to 90% RH
- Led Frequency: Once per 5 seconds
- Alarm Output: LED indication, network output
- Alarm Temp.: 8-15 C/min (Rate of rise)
57 ± 3°C (Fixed) - Installation: Ceiling mounted
- Reset Method: Automatic after temperature drops
- Alarm Indication: Red LED illumination during alarm condition
Installation Guidelines
- Install the detector on the ceiling, ideally at the center of the room.
- Keep it away from air vents, heating sources, or direct sunlight.
- Secure the detector base using screws provided.
- Connect the wiring according to the system configuration (conventional fire alarm system).
- Test the device after installation to ensure proper functionality.
Maintenance & Testing
- Please connect the wires correctly according to the instruction or product marking.
- Connect power supply, the detector gets into normal detecting state, then the LED flashes once per 10 seconds.
- Manual test: When using the heat source over 50 C to close the detector, the detector gets into alarm state, the LED lights continuously, while removing the magnet, cut the power off and return, the detector will resume into normal detecting state.
- Test the detector regularly using a heat test source to confirm proper operation.
- Clean the detector periodically to remove dust or dirt buildup.
- Always disconnect the power supply before performing maintenance.
- Inspect the LED indicators to confirm normal operation.
- Do not disassemble the detector—contact authorized service personnel if servicing is required.
Applications
- Kitchens and canteens
- Boiler rooms and engine rooms
- Parking areas and garages
- Industrial workshops and factories
- Warehouses and storage spaces
Why Choose MANXPOWER Heat Detector?
- Reliable and precise heat-based fire detection
- Ideal for harsh or smoky environments
- Easy installation and low maintenance
- High-quality design with durable components
- Trusted performance under the MANXPOWER brand
Notice
- The product should not be installed in the extreme hot or cold, high wind speed surroundings.
- The detector needs to be tested once every month.
- The product can prevent and reduce the disaster caused by fire, but it can not guarantee absolute safety. Besides using this product correctly, the user is advised to take all necessary precautions for safety and enhance safety consciousness in daily life.
