Advanced Smoke and Heat Detection in One Device

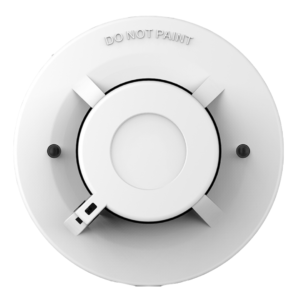

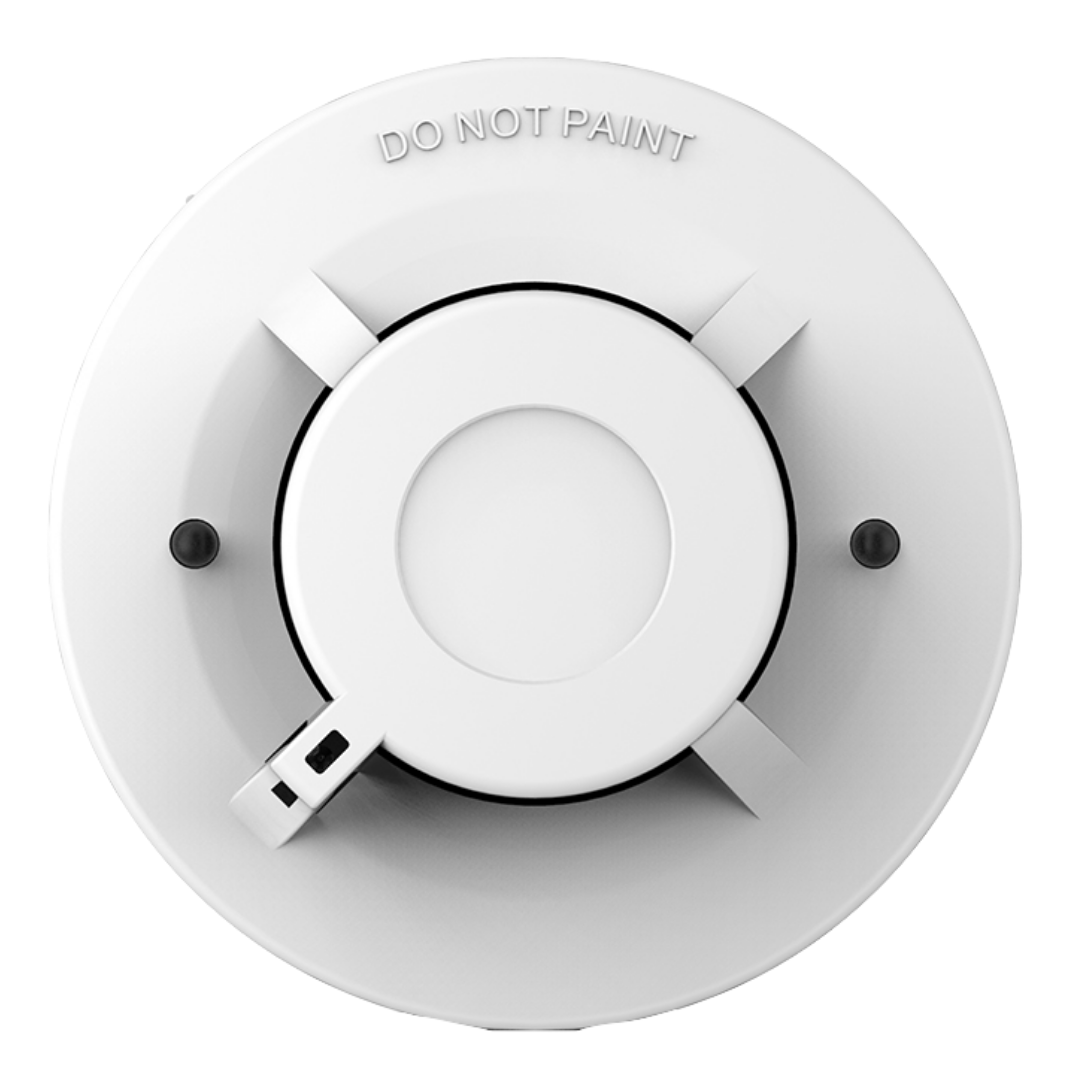

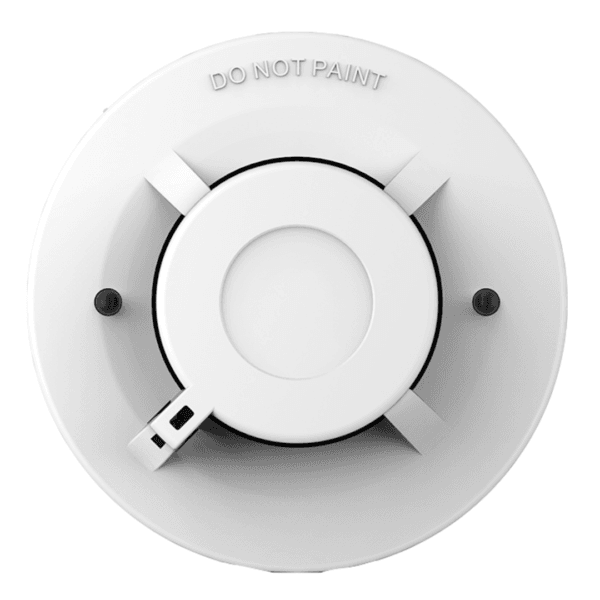

The MANXPOWER Multi Detector, also known as the Combined Smoke and Heat Detector, is an advanced fire detection device that integrates both photoelectric smoke detection and fixed temperature sensing technologies. Designed for reliable, fast, and accurate detection, it provides enhanced protection in environments where different types of fire may occur — whether caused by smoldering smoke or rapid temperature rise.
Built with intelligent circuitry and a stable structural design, the MANXPOWER Multi Detector ensures excellent performance, high sensitivity, and minimal false alarms, making it an ideal choice for both commercial and residential fire safety systems.
This product is composed of photoelectric smoke sensor and NTC heat sensor. it provides not only features of point photoelectric smoke detector, but also fixed temperature/rate of rise detector, which can reliably response to national standard test fire SH3 (PU plastic fire) and SH4 (n-heptane fire). The detector vam also detec naked flame generated by alcohol burning and make alarms. It’s applicable to indoor detecting circumstances, such as stores, houses, hotels, warehouses etc.
Key Features
- Input voltage: DC 12-35V
- Static current: ≤50uA
- Alarm current: ≤30mA
- Operating temperature: 0° C – 55° C
- Operating humidity: 10% – 95% RH (Non coagulating)
- Detecting senstivity: m = 0.15dB/m (cotton wicks smoldering test)
- Alarm temperature: 57°C/137F or 8-15°C/min (Rate of rise)
- Max electrify capacitance: 0.03uF
- Electrify time: ≤60s
- Alarm reset: Auto reset (power off reset ≤0.5s optional)
- Installation: Ceiling mounted
- Detecting area: 60m2 (with 4 meter height)
Wires Installation
All the wires installation must accord with national and local effective laws and criteria. All wires must have the suitable size and the wire connecting detectors and other devices must have marks to avoid any error. Any unsuitable connection will lead to false alarm.
Installation Guidelines
- Install the detector on the ceiling at the center of the room for optimal coverage.
- Avoid installation near air vents, fans, or heat sources.
- Secure the base using screws and connect the wiring as per the fire alarm system diagram.
- After installation, test the detector to ensure proper smoke and heat response.
Maintenance & Testing
- Test the detector regularly to confirm both smoke and heat sensing functions.
- Clean the unit periodically using a dry, soft brush to remove dust.
- Disconnect the power supply before performing any maintenance.
- Verify LED operation during routine inspections.
- Do not disassemble the detector; contact authorized service personnel for repairs.
Applications
- Residential buildings
- Commercial offices
- Hotels and restaurants
- Warehouses and factories
- Hospitals and schools
Why Choose MANXPOWER Multi Detector?
- Combines smoke and heat detection for superior fire safety
- Reduces the need for multiple detectors in one area
- Reliable operation with minimal false alarms
- Easy installation and low maintenance
- Backed by the trusted performance of MANXPOWER fire safety technology
