Choosing between a braided and an unbraided flexible sprinkler hose affects strength, flexibility, installation and project cost. Both types connect sprinkler heads to branch lines, but they are built differently and suit different projects.
MANXPOWER offers both braided and unbraided flexible sprinkler hoses in stainless steel for fire protection installations. This guide explains the difference between braided and unbraided flexible hose in simple words, with available lengths and what to check before you choose.
Quick answer: A braided flexible sprinkler hose has a woven stainless steel wire layer around its corrugated inner hose. This braid generally adds strength and kink resistance. An unbraided flexible sprinkler hose has no outer braid, so it is generally lighter and more flexible. The right choice depends on your approved system design and the listing of the hose.
What Is a Flexible Sprinkler Hose?
A flexible sprinkler hose is a stainless steel hose assembly that connects sprinkler pipework to a single sprinkler head, usually in a ceiling. It is also called a flexible sprinkler drop or flexible sprinkler pipe.
Compared to a rigid pipe drop, a flexible sprinkler hose offers:
- Easy positioning of sprinkler heads in ceiling grids
- Flexible routing in tight ceiling spaces
- Less cutting and threading of rigid pipe drops
- Easier changes when the ceiling layout changes
- Some allowance for building movement, which is why flexible hose is often used in seismic designs
The hose must be suitable for the sprinkler system and installed as per its listing and the manufacturer’s instructions.
What Is the Difference Between Braided and Unbraided Flexible Sprinkler Hose?
The main difference is the outer construction.
Braided hose meaning: A corrugated stainless steel inner hose covered with a woven stainless steel wire braid. The braid generally adds strength and helps protect the hose from stretching, kinking and abrasion.
Unbraided hose meaning: An unbraided hose (also searched as “unbraided hose pipe”) is a corrugated stainless steel hose without the outer wire braid. It is generally lighter and easier to bend.
Both types are used in fire sprinkler installations, provided the hose assembly is listed and suitable for the application.
Braided vs Unbraided Flexible Sprinkler Hose: Comparison
| Feature | Braided hose | Unbraided hose |
| Construction | Corrugated hose with outer wire braid | Corrugated hose without outer braid |
| Outer layer | Stainless steel wire braid | No outer wire braid |
| Mechanical strength | Generally higher | Generally lower |
| Kink and abrasion resistance | Generally higher | Generally lower |
| Flexibility | Flexible | Generally more flexible |
| Weight | Generally heavier | Generally lighter |
| Cost | Usually higher | Usually lower |
| Often chosen for | Vibration, heavy handling, demanding sites | Standard ceilings and tight routing |
| Certification | UL Listed and FM Approved | UL Listed |
Actual performance depends on the hose design, size, fittings, pressure rating and listing. Check the product datasheet for pressure rating, bend radius, maximum number of bends and fittings before you select a hose.

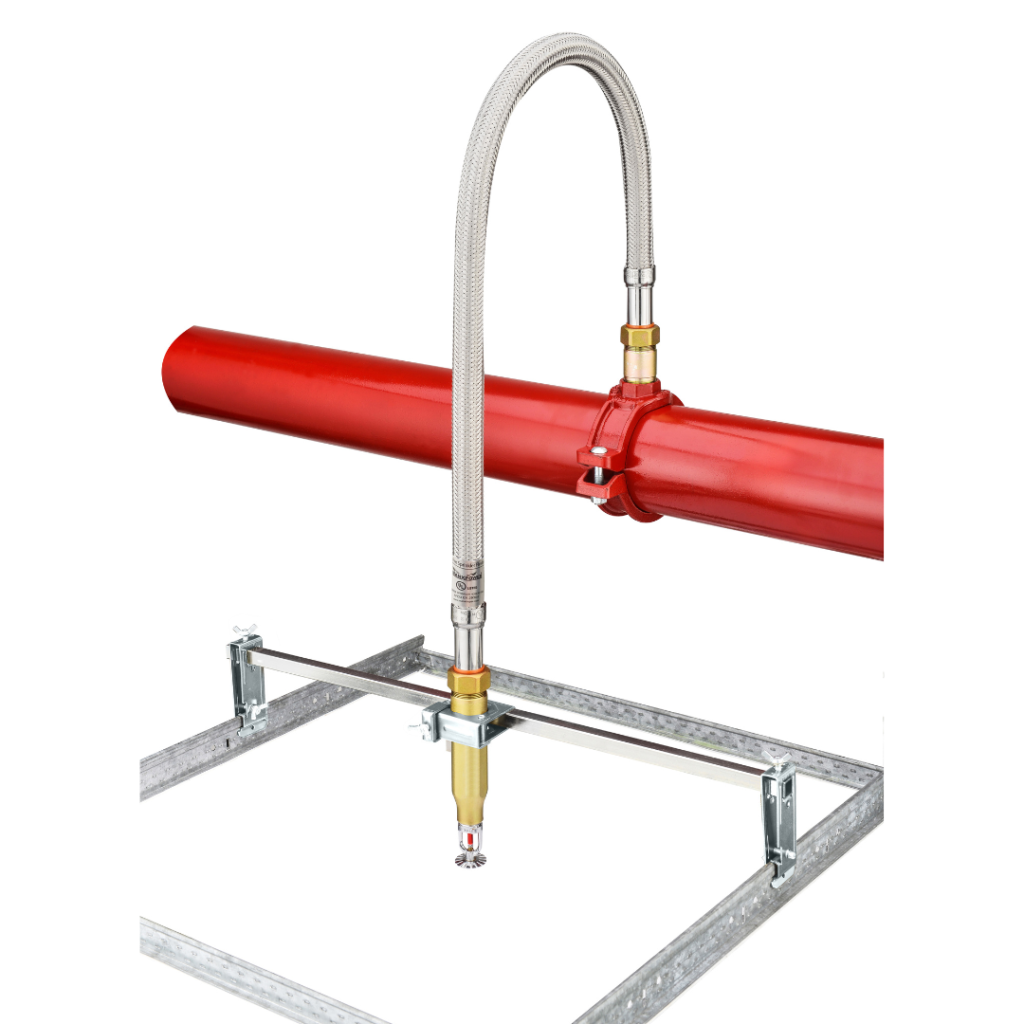

Why Choose a Braided Flexible Sprinkler Hose?
- Stainless steel wire braid around the corrugated hose
- Generally higher mechanical strength and kink resistance
- Added resistance to vibration and installation stress
- UL Listed and FM Approved
- Available in multiple lengths
Common applications:
- Suspended ceiling sprinkler systems
- High-rise buildings
- Hospitals and laboratories
- IT data centres and server rooms
- Industrial plants and warehouses
For vibration or seismic requirements, verify the product approval and project design. A braided construction alone does not prove seismic suitability.
Explore our flexible fire sprinkler hose range.

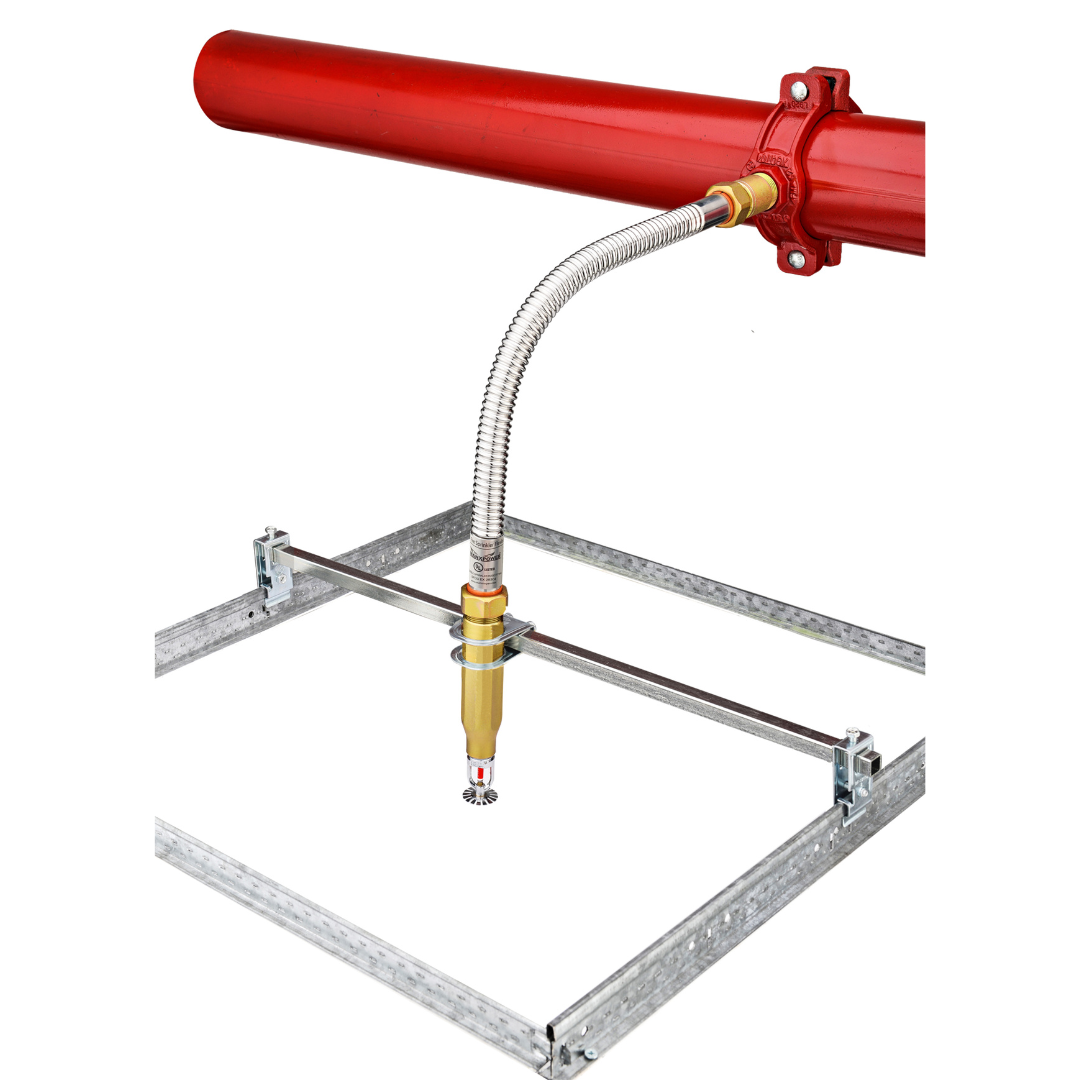

Why Choose an Unbraided Flexible Sprinkler Hose?
- Corrugated stainless steel construction with no outer braid
- Generally lighter and more flexible, which helps in tight routing
- Usually more cost-effective for standard installations
- UL Listed
- Available in multiple lengths with compatible fittings and mounting accessories
Common applications:
- Commercial complexes and office buildings
- Shopping malls and retail outlets
- Hotels and educational institutions
- Hospitals and healthcare facilities
- Data centres and IT rooms
Final selection should follow the manufacturer’s installation instructions, system design and listing requirements.
Explore our unbraided flexible sprinkler hose options.
Braided or Unbraided: Which Should You Choose?
Neither type is right for every project. Check these points:
- Product listing: Confirm the complete hose assembly, including fittings, is listed for your sprinkler application (for example under UL 2443, UL category VENF).
- Environment: Consider ceiling construction, vibration and mechanical exposure. Braided hose often suits these conditions better.
- Space: In a tight ceiling void, unbraided hose usually suits routing better.
- Pressure rating: Check working pressure and other limits in the datasheet.
- Length and fittings: Select a length permitted by the listing and system design, and check inlet and outlet connections and brackets.
- Budget: Braided hose usually costs more. Compare quotations for the exact specification you need.
Not sure which fits? Consult a qualified fire protection professional, or send us your project details and our team will help.
Which Hose Length Should You Choose?
MANXPOWER braided and unbraided flexible sprinkler hoses are available in:
- 700 mm
- 1000 mm
- 1200 mm
- 1500 mm
- 1800 mm
Choose a length that reaches the sprinkler head without sharp bends or strain. The length must also comply with the listing, support requirements and manufacturer’s instructions.
How Do You Install a Flexible Sprinkler Hose?
Installation must follow the manufacturer’s instructions and the approved sprinkler system design.
- Check the hose type, length and fittings against the system design.
- Follow the minimum bend radius and the maximum number of bends in the datasheet.
- Hold the hose end steady while tightening fittings, so the hose does not twist.
- Protect the hose from sharp edges and mechanical damage.
- Install the brackets and supports as specified by the manufacturer.
- Follow applicable inspection and testing requirements.
UL 2443 covers flexible sprinkler hose with fittings for fire protection service, and NFPA 13 includes installation requirements for flexible sprinkler hose. Always consult a qualified fire protection professional before installation.
Why Do Professionals Choose MANXPOWER?
MANXPOWER products are supplied by Manx Impex, an ISO 9001:2015 certified company based in New Delhi, supplying industrial and fire safety products since 2015.
- Braided flexible sprinkler hose: UL Listed and FM Approved
- Unbraided flexible sprinkler hose: UL Listed
- Stainless steel construction
- Multiple lengths: 700 mm to 1800 mm
- Installation accessories: compatible fittings and mounting components
For certification details and the listing of a specific model, contact our team.
Get the Right Flexible Sprinkler Hose
Compare the MANXPOWER fire sprinkler range or request a quotation. For more, read our guide to fire sprinklers and flexible sprinkler hoses and learn how fire sprinkler systems work.
Email: info@manximpex.com
Phone / WhatsApp: +91 11 4987 2937
Address: 3963/9, Ground Floor, City Market, Ajmeri Gate, New Delhi, 110006
Frequently Asked Questions:
What is the difference between braided and unbraided flexible hose?
A braided hose has a woven stainless steel wire layer around its corrugated inner hose that generally adds strength and kink resistance. An unbraided hose has no outer wire braid, so it is generally lighter and more flexible.
What is an unbraided hose pipe?
An unbraided hose pipe is a corrugated flexible hose without an outer wire braid. In fire protection systems, an unbraided flexible sprinkler hose connects sprinkler pipework to a sprinkler head.
What does braided hose mean?
A braided hose has a woven stainless steel wire layer around its inner corrugated tube. This outer layer adds reinforcement and protection.
Is a braided or unbraided sprinkler hose better?
It depends on the project. Braided hose often suits vibration, heavy handling and demanding sites. Unbraided hose usually suits standard ceilings and tight routing. Always choose a hose that is listed for your system and approved design.
What lengths are available for MANXPOWER flexible sprinkler hoses?
MANXPOWER flexible sprinkler hoses are available in 700 mm, 1000 mm, 1200 mm, 1500 mm and 1800 mm lengths.
Are MANXPOWER flexible sprinkler hoses UL Listed?
MANXPOWER braided and unbraided flexible sprinkler hoses are UL Listed, and the braided hose is also FM Approved. Contact our team to confirm the listing details for a specific model and configuration.
