Reliable and Resettable Fire Alarm Activation

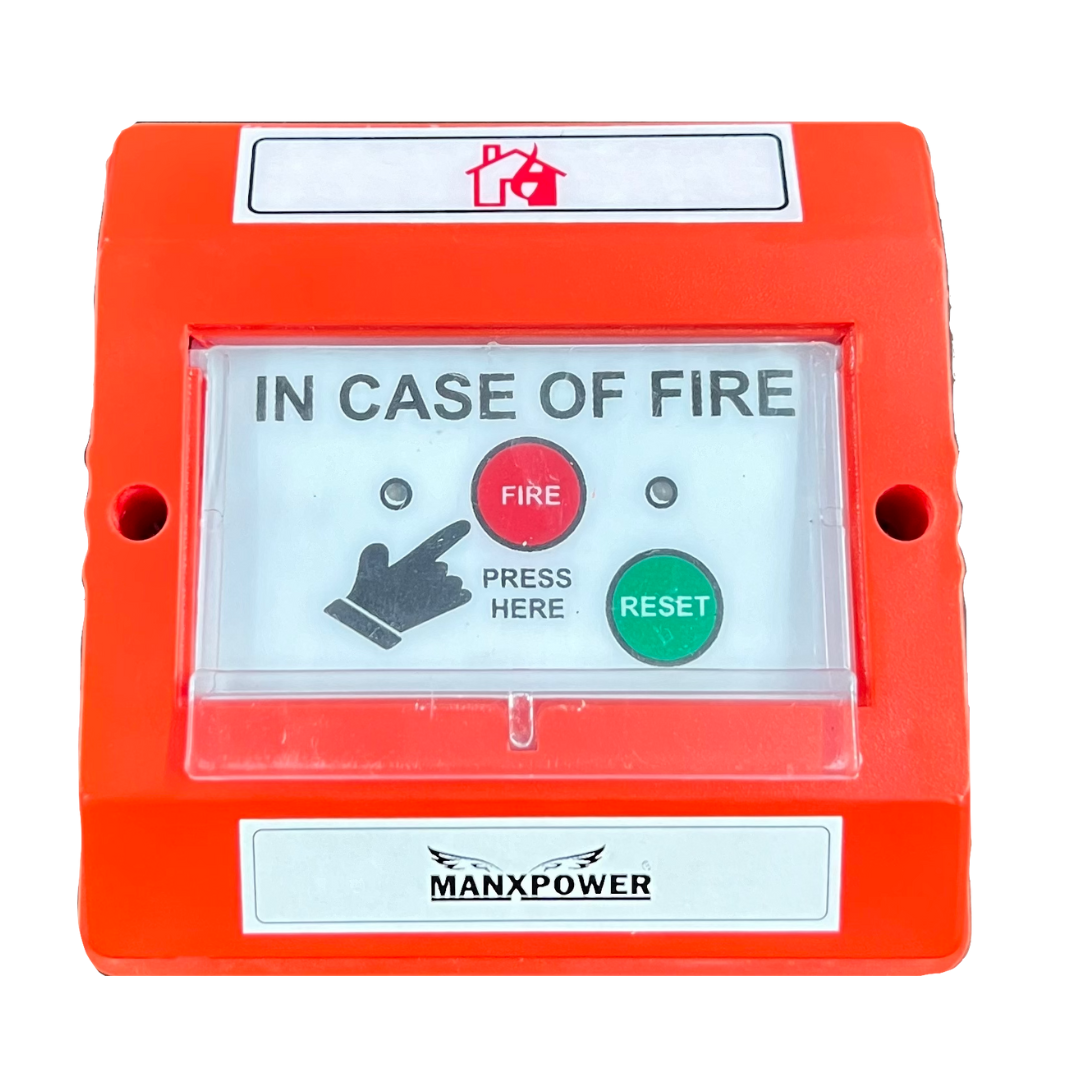

The MANXPOWER MCP Eco is a high-quality ABS Manual Call Point designed to provide a manual alarm interface for any conventional fire alarm control panel. It allows users to manually raise a fire alarm in emergency situations, ensuring fast detection and response across all types of buildings.
Constructed with durable ABS housing, the MANXPOWER MCP Eco combines modern design, ease of installation, and dependable performance. Its bi-color LED indicators clearly display system status — green for normal condition and red for alarm activation, providing instant visual feedback and ensuring reliable operation during critical moments.
Key Features
- Resettable operation – eliminates the need to replace glass after activation
- Dual switch design – one for alarm activation and one for reset
- Bi-color LED indication:
- Green LED blinks every 14 seconds in normal condition
- Steady red LED indicates alarm condition
- Compatible with all conventional fire alarm systems
- Wall-mounted design with factory-fitted back box
- Supports surface or semi-flush mounting
- Tamper protection – unauthorized removal triggers a system fault
- Elegant red finish for clear visibility
- Ideal for indoor applications such as malls, offices, restaurants, and residences
Technical Specifications
- Operating Voltage:Â 24V DC
- Current Consumption: 150µA (Normal) / 60mA (Alarm) @ 24V DC
- Operating Temperature: 0°C to +60°C
- Humidity:Â 5% to 95% RH (non-condensing)
- Housing Material:Â ABS
- Weight:Â 80g
- Color: Red
Operation
- Normal Condition:Â The green LED blinks every 14 seconds, indicating the MCP is active and healthy.
- To Raise Alarm: Flip open the transparent cover and press the alarm switch — the red LED glows steadily, confirming alarm activation.
- To Reset: Press the reset switch — the red LED turns off and the green LED resumes blinking, restoring the MCP to normal operation.
Applications
- Shopping malls and retail stores
- Hotels and restaurants
- Office buildings and commercial spaces
- Residential complexes
- Hospitals, schools, and public institutions
Benefits
- Fast and dependable manual activation in emergencies
- Clear LED indicators for easy monitoring
- Simple installation and reset process
- Durable, long-lasting ABS construction
- Universal compatibility with conventional fire alarm systems
Why Choose MANXPOWER MCP Eco?
- Trusted MANXPOWER reliability and performance
- Compact, resettable, and easy-to-use design
- Low maintenance and reusable
- High visibility and quick response during emergencies
- Designed for modern safety systems with long operational life
#BigOrSmallFireSafetyIsForAll
At MANXPOWER, we design safety solutions that are reliable, efficient, and built to protect. The MCP Eco ensures that manual alarm activation is quick, easy, and effective — because every second counts in an emergency.
