BRAIDED FLEXIBLE HOSE BY MANXPOWER

---

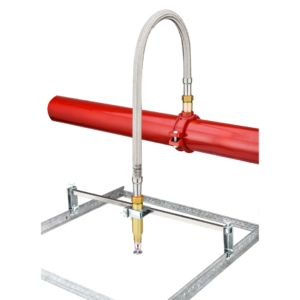

The MANXPOWER Braided Flexible Fire Sprinkler Hose offers a rugged, UL Listed solution for connecting sprinkler heads to branch lines quickly and securely. Built with a stainless steel braided exterior, this hose delivers added mechanical strength and vibration resistance — making it ideal for active ceiling environments and high-traffic zones.

Available in 700mm, 1000mm, 1200mm, 1500mm, and 1800mm lengths, MANXPOWER’s braided hose range is suitable for both wet and dry fire sprinkler systems, and is fully compatible with NFPA 13/13R/13D standards.

Product Highlights:

• UL Listed for global fire safety compliance
• Braided design for added durability and mechanical protection
• 1” Male Inlet with ½” or ¾” Female Sprinkler Outlet
• Stainless Steel (ANSI 304) inner hose and braided exterior
• Withstands higher vibration and installation stress
• Working Pressure: 14 bar / 203 psi
• Max Temperature: 66°C (150°F)
• Includes complete bracket kit and square bar


Available Hose Lengths:

• 700 mm
• 1000 mm
• 1200 mm
• 1500 mm
• 1800 mm


Each hose comes with:

• Inlet & outlet nipples
• EPDM gasket
• Square bar & bracket clamp set
• Plastic lock ring


Ideal For:

• Suspended ceiling sprinkler systems
• Seismic-prone buildings
• Hospitals and labs
• IT data centers and server rooms
• Commercial complexes and retail stores
• Industrial plants and warehouses


Why Choose a Braided Hose?

Braided sprinkler hoses offer enhanced durability over unbraided types. The external braid layer increases resistance to kinks, bends, and mechanical damage, especially during ceiling movement or in areas with vibration from HVAC and machinery.

MANXPOWER: Trusted for Fire Safety

As a top supplier of UL Listed flexible sprinkler hoses in India, MANXPOWER is known for products that combine certified performance with ease of installation. Our braided hoses are factory-assembled, leak-proof, and ready to install with zero welding or threading required.
